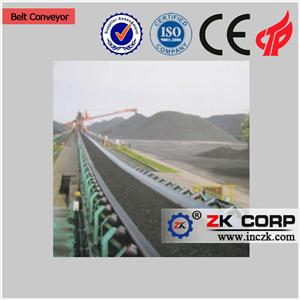

Main Composition of Belt Conveyor

Belt conveyors are widely used and can be seen everywhere in life. For example, grain stations transport food, food processing stations transport raw materials and finished products, semi-finished products, coal transportation, sand and stone delivery in stone factories, and transmission of various factory materials, and even supermarkets with a belt conveyor, it's nowhere to be seen.

Belt conveyors are widely used and can be seen everywhere in life. For example, grain stations transport food, food processing stations transport raw materials and finished products, semi-finished products, coal transportation, sand and stone delivery in stone factories, and transmission of various factory materials, and even supermarkets with a belt conveyor, it's nowhere to be seen.

In the mining industry, belt conveyors are widely used in sand production lines and mineral processing equipment. At the same time, they are common machines in some building materials and equipment. Belt conveyors are widely used and highly efficient. They are highly favored by friends from all walks of life. The following ZK CORP machines will introduce the main components of the belt conveyor.

First, the drive device

The driving device is a device that transmits the torque of the motor to the belt and continuously moves the belt. It consists of a motor, a drive roller, a coupling, a speed reducer, and the like. With the increase of the transport capacity of the conveyor, the longer the transport distance, the power of the electric motor is increasing, and the multi-motor transmission is gradually increasing. With multiple motor drives, the height and width of the transmission can be reduced.

Second, the brake device

Braking devices mainly refer to brakes and backstops. It is mainly used to prevent the tape machine belt from reversing when the load stops, which makes the material ooze out (when the tape breaks or mechanical damage in severe cases). In general, when the inclination angle of the tape conveyor exceeds 4'-6', the braking device must be set.

Third, support device

The main support device refers to a series of equipment that carries tape and materials and completes the express operation. The support device of the adhesive tape machine mainly consists of an upper tip roller, a lower support roller, a misalignment bracket, a buffer roller and a frame.

Four, tensioning device

The role of the tensioning device is to ensure that the tape has sufficient tension, so that the roller and the tape produce the necessary friction, limit the tape's sag between the brackets, and make the belt conveyor work normally. The commonly used tensioning devices are mechanical tensioning, screw tensioning and weight tensioning.

Fifth, change the device

The redirection device is mainly composed of a redirection roller, a special bracket and a pressure roller.

Sixth, cleaning device

Cleaning device When the belt conveyor is in operation, it is very important to clean the dirt on the tape, roller, and idler, because the dirt can cause belt runaway and serious wear of moving parts. Usually, behind the unloading drum, a squeegee cleaner is provided to clean the dirty surface of the belt. Another method is to install a rotary brush at the bottom of the unloading drum for cleaning.

The driving device, braking device, supporting part, tensioning device, diverting device, cleaning device, charging device, unloading device and adhesive tape together form a belt conveyor, which brings convenience to everyone's production and life!
