【Capacity】:
20-1500TPD【Main Materials】:
Limestone, dolomite, coal gangue, magnesium carbonate, aluminum hydroxide【Main Equipment】:

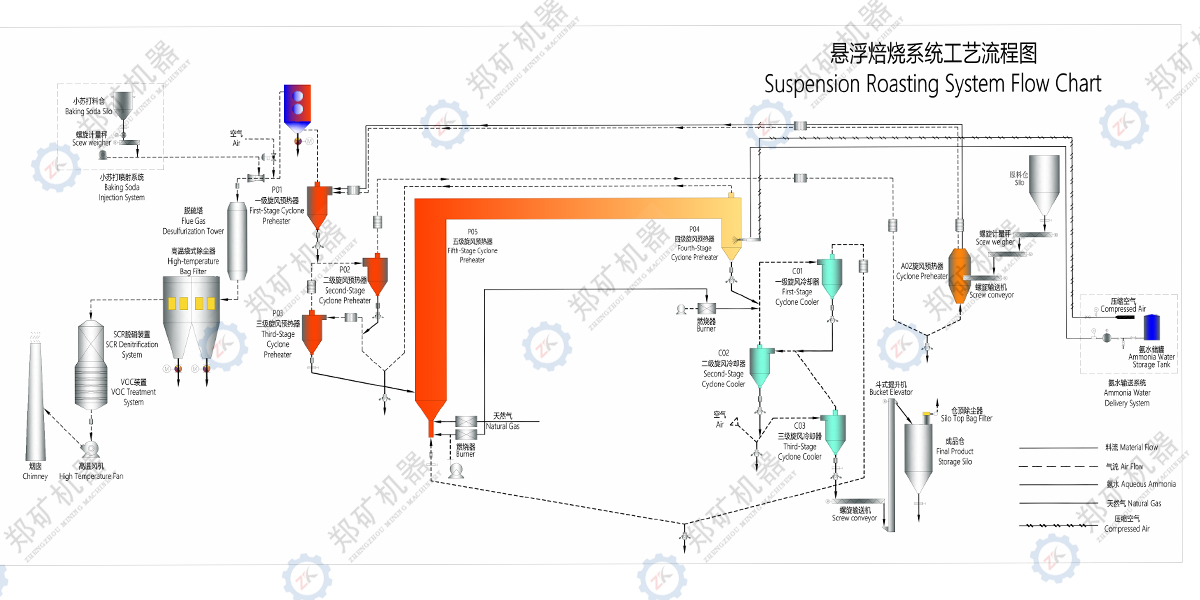

Four-stage preheater + two-stage calcination + three-stage cooler
Fuel: natural gas, coke oven gas, ore furnace exhaust gas, coal powder
Processing material: limestone, dolomite, coal gangue, magnesium carbonate, aluminum hydroxide
Calcination temperature: 600-1280℃
The ZK suspension calcination system is suitable for the calcination of various powdered materials, such as limestone, dolomite, coal gangue, magnesium carbonate, aluminum hydroxide, etc. For different materials, the requirements for raw materials and product quality are different.
(1)The fine particle high-quality resources that cannot be utilized by rotary kilns and shaft kilns have been fully utilized
(2) It has low heat consumption and saves more than 30% energy compared with the traditional rotary kiln production process
(3) cover a small area
(4) It has a large production capacity, a high level of automation, flexible production adjustment, high product activity and uniform quality
(5)It is suitable for large enterprises to produce high-quality products
Suspension Calcined Dolomite Technical Indicators
| Item | Parameter | Remark |
|---|---|---|
| Dolomite Production (tons) | 110000、165000、265000 | / |
| Magnesium Ingot output (tons) | 20000、30000、50000 | / |
| Raw Material Fineness (mesh) | 100-200 | / |
| Ignition loss (%) | ≤0.5 | / |
| Hydration activity (%) | ≥30 | Varies Depending on the Raw Materials |
| Heat Consumption（Kcal/kg） | 875 | （Natural Gas104m³/t） |
| Power Consumption（kwh/t） | 40 | / |
| Core Technology and Equipment | Four-stage Preheater + Two-stage Calcination + Three-stage Cooler | / |
Suspended Calcined Lime Technical Indicators
| Item | Parameter | Remark |
|---|---|---|
| Capacity（TPD） | 500、800、1000、1200、1500 | / |
| Raw Material Fineness（μm） | 100 | / |
| Finished Product Decomposition Rate（%） | ≥97 | / |
| Calcium Oxide Content（%） | ≥85 | Varies Depending on the Raw Materials |
| Activity（ml） | ≥340 | Varies Depending on the Raw Materials |
| Heat Consumption（Kcal/kg） | 910 | （Natural Gas107m³/t） |
| Power Consumption（kwh/t） | 45 | / |
| Core Technology and Equipment | Five-stage Preheater + Decomposition Furnace + Four-stage Cooler | / |
Suspended Calcined Coal Gangue Technical Indicators
| Item | Parameter | Remark |
|---|---|---|
| Annual Output (10,000 tons) | 20、50、100、200、300 | / |
| Raw Material Fineness (mesh) | 100-200 | / |
| Finished Product Burning Rate (%) | ≤5 | / |
| Phosphorus Pentoxide Content (%) | ≤3 | Varies Depending on the Raw Materials |
| Sulfur Trioxide Content (%) | ≤3 | Varies Depending on the Raw Materials |
| Heat consumption（Kcal/kg） | 350 | （Natural Gas 40m³/t） |
| Power Consumption（kwh/t） | 35 | / |
| Core Technology & Equipment | Four-stage Preheater + Two-stage Decomposition + Three-stage Cooling | / |
