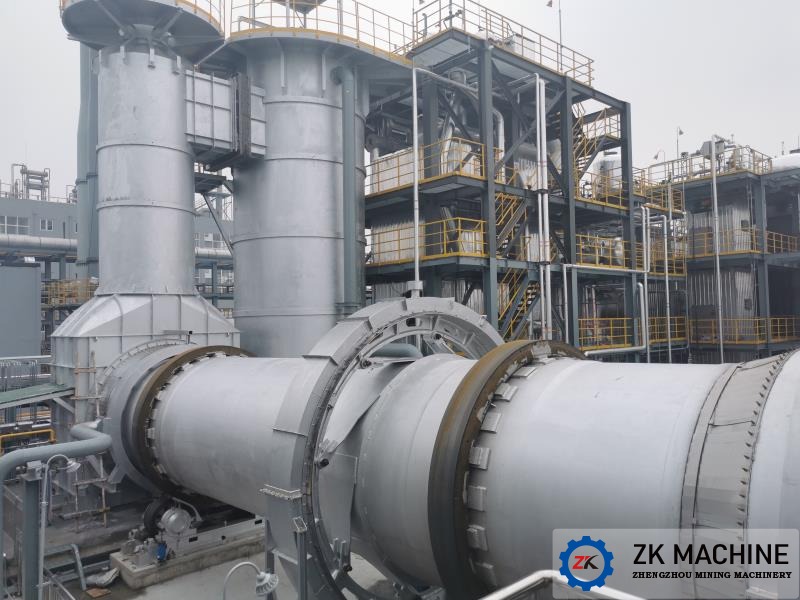

Solid Hazardous Waste Incineration System

【Capacity】:

10-100 tons/day

【Main Materials】:

Various solid wastes, hazardous waste, medical waste, chemical, industrial wastes and so on.

【Main Equipment】:

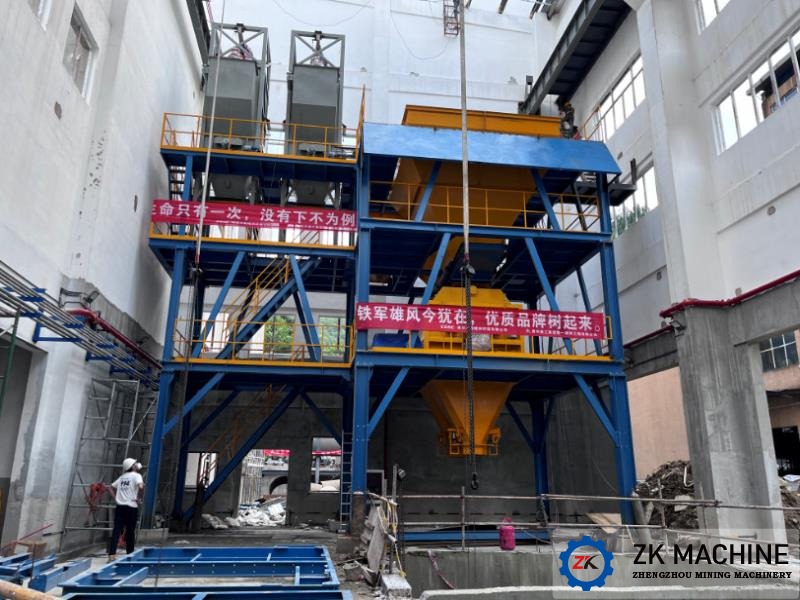

pretreatment and feeding system, rotary kiln + second combustion chamber combustion system, preheat recovery system, exhaust gas purification treatment system

Chat Online +8618937185591 Leave Message ec19@zkcorp.com

Introduction
Features
Parameter
Related Cases

INTRODUCTION

Solid Hazardous Waste Incineration System

Hazardous wastes refer to wastes with hazardous properties and characteristics, which have one or more of the hazardous properties such as toxic, explosive, flammable, corrosive, etc. The disposal of hazardous wastes at home and abroad is highly valued. Currently there are two main treatment methods on the disposal of hazardous wastes: incineration and landfill. Among them, the rotary kiln incineration technology is currently a widely used technology for the treatment of hazardous waste, and it is becoming an important approach for the harmless treatment of hazardous waste.

FEATURES

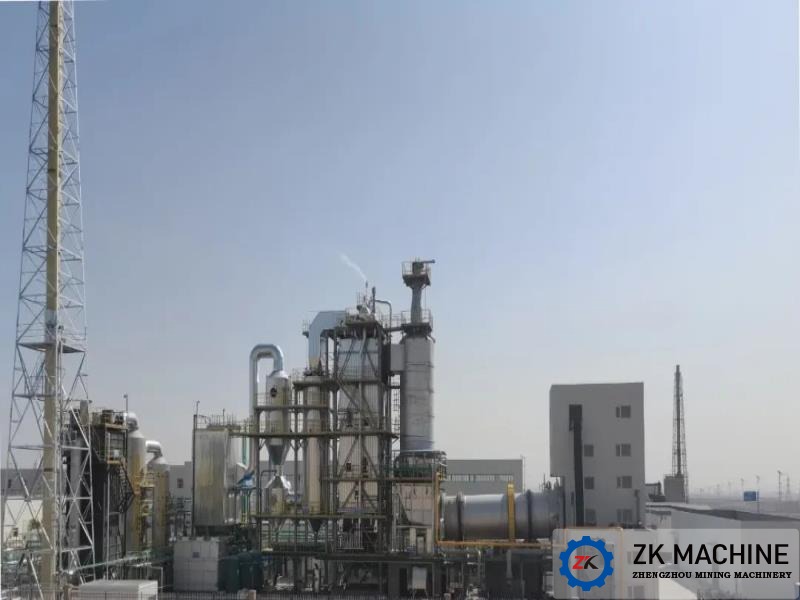

Process flow: pretreatment and feeding system---rotary kiln + second combustion chamber combustion system---waste heat recovery system---exhaust gas purification treatment system---flue gas emission incineration system: including hopper, rotary kiln, secondary Combustion chamber, and auxiliary equipment such as combustion and fan. Waste heat recovery system: including waste heat boiler and boiler auxiliary system equipment. Flue gas purification system: Cool the flue gas in the incinerator and remove harmful substances, and discharge it after meeting the emission requirements. Including quench tower, dust collector, scrubber, flue gas heater, activated carbon supply system, ash removal system, etc. Flue gas discharge system: including induced draft fan, chimney, etc.

PAEAMETER

**Parameters of solid waste and hazardous waste rotary kiln**
No.	Model (m)	Capacity（t/d）	Rev. Speed（rpm）	Pedestal Qty. (Group)	Reducer model	Motor model	Power（kW）
1	Ø2.2×9m	20-30	0.2~2	2	MainZSY315-80	MainYVF3-200L1-6	18.5
1	Ø2.2×9m	20-30	0.2~2	2	AuxiliaryZSY160-80	AuxiliaryYE3-100L2-6	3
2	Ø2.6×10m	30	0.15~1.5	2	MainZSY355-71	MainYVF3-225M-6	30
2	Ø2.6×10m	30	0.15~1.5	2	AuxiliaryZSY160-40	AuxiliaryYE3-112M-4	4
3	Ø2.5×13m	35	0.2~2	2	MainZSY355-63	MainYVF3-280S-6	45
3	Ø2.5×13m	35	0.2~2	2	AuxiliaryZSY160-40	AuxiliaryYE3-112M-4	4
4	Ø3.0×11m	40	0.2~2	2	MainZSY355-56	MainYVF3-280S-6	45
4	Ø3.0×11m	40	0.2~2	2	AuxiliaryZSY160-40	AuxiliaryYE3-112M-4	4
5	Ø3.2×14m	50	0.2~2	2	MainZSY400-56	MainYVF3-280M-6	55
5	Ø3.2×14m	50	0.2~2	2	AuxiliaryZSY160-40	AuxiliaryYE3-132S-4	5.5
6	Ø3.3×15m	60	0.2~2	2	MainZSY400-56	MainYVF3-280M-6	55
6	Ø3.3×15m	60	0.2~2	2	AuxiliaryZSY160-40	AuxiliaryYE3-132S-4	5.5
7	Ø3.5×16m	60	0.2~2	2	MainZSY400-50	MainYVF3-280M-6	55
7	Ø3.5×16m	60	0.2~2	2	AuxiliaryZSY160-40	AuxiliaryYE3-132S-4	5.5
8	Ø3.8×16m	50-70	0.1-1.1	2	MainZFY500-100	MainYVF3-280M-6	55
8	Ø3.8×16m	50-70	0.1-1.1	2	AuxiliaryZSY160-25	AuxiliaryYE3-132S-4	5.5
9	Ø4.0×14m	80	0.1-1.1	2	MainZFY500-112	MainYVF3-280M-6	55
9	Ø4.0×14m	80	0.1-1.1	2	AuxiliaryZSY160-25	AuxiliaryYE3-132S-4	5.5
10	Ø4.2×16m	100	0.1-1.0	2	MainZFY500-112	MainYVF3-280M-6	55
10	Ø4.2×16m	100	0.1-1.0	2	AuxiliaryZSY160-25	AuxiliaryYE3-132S-4	5.5
11	Ø4.5×16m	100	0.05-0.5	2	MainZFY630-200	MainYVF3-280M-6	55
11	Ø4.5×16m	100	0.05-0.5	2	AuxiliaryZLY140-20	AuxiliaryYE3-132S-4	5.5
