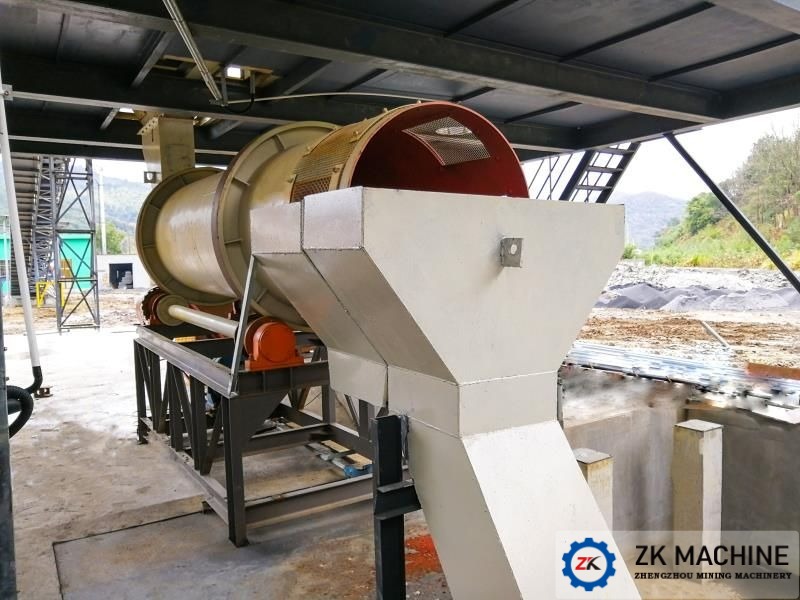

Brief introduction of ZX1245 shaper equipment

The shaping machine is used to harden the surface of the formed molecular sieve particles and improve the strength of molecular sieve pellets. Compared with the old shaper, the transmission device of ZX1245 shaper is changed from chain transmission to gear transmission, which makes the whole machine run faster and more smoothly and improves the shaping efficiency; The new graphite lubrication device is adopted for the wheel belt and gear belt, which has better lubrication effect; A layer of 2mm stainless steel plate with convex points is added to the inner wall of the cylinder, which can freely drain the material under the action of gravity after lifting to a certain.

Working principle:

The formed molecular sieve particles are evenly fed into the hardening cylinder through the chute from the feeding end of the cylinder. After the molecular sieve particles are lifted to a certain height with the rotation of the cylinder, they are free to fall under the action of gravity. Repeat this process. Since the hardening cylinder is installed in a inclined way, the molecular sieve particles move from the high end to the low end in the axial direction of the cylinder while rotating with the cylinder, during this process, the strength of molecular sieve balls is continuously improved, the surface is hardened, and then discharged through the discharge end of the cylinder to complete the shaping and hardening process of molecular sieve.

Structure composition:

The shaping machine mainly consists of cylinder, supporting device, transmission device, etc. The barrel is made of high quality carbon steel coil into multiple sections, which is welded by automatic submerged arc welding. It is lined with 2mm thick 304 stainless steel plate with concave and convex points, and the high end has a material retaining ring to prevent material return. The supporting device supports all the weight of the rotary cylinder and the materials in the cylinder, and enables the cylinder to operate safely and smoothly. It mainly consists of supporting wheel, underframe and other parts. Supporting wheel is used to support the weight of cylinder and control the axial movement of cylinder. The transmission device of the shaper adopts gear transmission, which includes motor, coupling, reducer, small gear, large gear, etc., and the transmission is stable and reliable.
