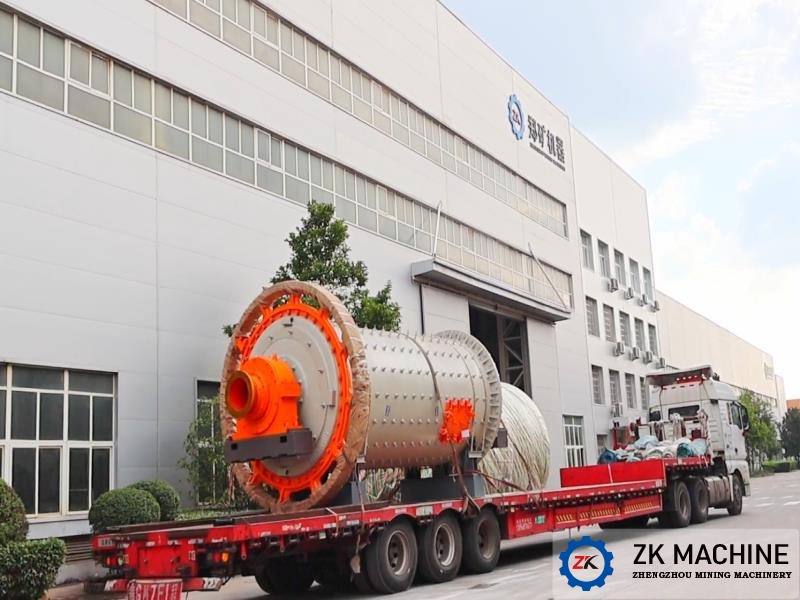

Ore ball mill is used to separate and screening different ore minerals, separate ore tailing. It also be used for ore grinding, non-ferrous metal beneficiation, new-type building material producing.
According to the discharge method, the ball mill divided to dry-type mill and wet-type mill.
High grinding efficiency, low consumption;
Product fineness is adjustable and uniform;
Low energy consumption, low wear, low operating costs;
The liner is made of high-quality wear-resistant material.
| Model (mm) | Rotating Speed (r/min) | Weight of ball (t) | Inlet Size (mm) | Outlet Size (mm) | Capacity (t/h) | Motor Power (kW) | Weight (t) | Remarks |
|---|---|---|---|---|---|---|---|---|
| Φ750×750 | 40.56 | 0.5 | ≦20 | 0.074-0.3 | 0.18-0.5 | 15 | 2.774 | Energy saving mill |
| Φ900×3000 | 36 | 2.7 | ≦20 | 0.074-0.89 | 1.1-3.5 | 22 | 6.8 | Dry type |
| Φ900×3000 | 39 | 5.8 | ≦25 | 0.075-0.89 | 0.8-3.1 | 22 | 7.1 | Wet lattice |
| Φ1200×4500 | 33 | 13 | ≦25 | 0.074-0.4 | 0.7-8 | 45 | 14.2 | Wet lattice |
| Φ1500×5700 | 30 | 25 | ≦25 | 0.074-0.6 | 4-14 | 130 | 25 | Wet lattice |
| Φ1830×6400 | 24.1 | 21 | ≦25 | 0.074-0.4 | 6.5-15 | 210 | 34 | Wet overflow |
Wearing parts
| No. | Name | Material | Qty. | Part | Remarks |
|---|---|---|---|---|---|
| 1 | Spherical tile (main bearing) | HT200/ZPbSb15Sn10 | 2 | Main bearing | Different specifications, different materials |
| 2 | Cylinder liner | ZGMn13 (General) | As required | Cylinder | Different specifications, different quantities |
| 3 | Mill door liner | ZGMn13 (General) | As required | Cylinder | Different specifications, different quantities |
| 4 | Mill door (manhole cover) | ZGMn13 (General) | As required | Cylinder | Different specifications, different quantities |
| 5 | Mill door liner | ZGMn13 (General) | As required | Cylinder | Different specifications, different quantities |
| 6 | Gear | 45#Forge | 1 | Transmission device | Different requirements, different materials |
