Light Expanded Clay Aggregate Production Line

【Capacity】:

15,000-100,000(m3/a)

【Main Materials】:

Clay,Shale

【Main Equipment】:

Dust collector,crusher,rotary kiln
  • Introduction
  • Features
  • Parameter
  • Related Cases

INTRODUCTION

Light Expanded Clay Aggregate Production Line

Henan Zhengzhou Mining Machinery Co.,Ltd has started the Light Expanded Clay Aggregate (LECA) equipment manufacturing since company foundation. We always trance the new technology developing on the LECA equipment manufacturing and have cooperate with the college and R&D institute to improve the equipment performance and function. Our LECA equipment have been widely used in Chinese LECA manufactures and won the good reputation from customers. We have begun the exported business since 2010 and create the good economic benefit. We adopt the energy saved technology and get the good efficiency.

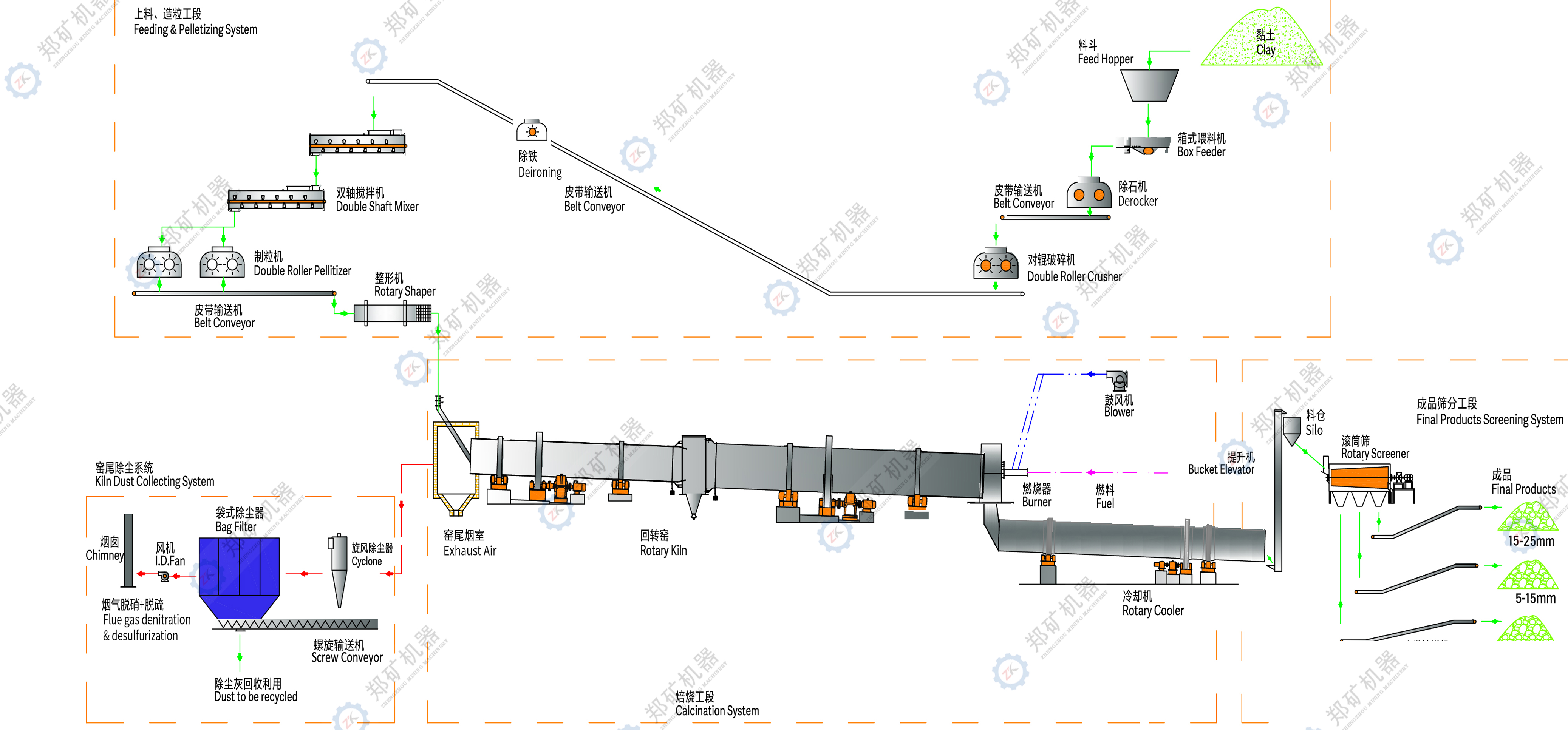

Light Expanded Clay Aggregate Production Line, When the raw material is clay or slurry, the production flow chart shall be consist of raw material process, mixing, granulating, insert type rotary kiln burning process, cooling process, screening and bag packing. When the raw material is shale, the production flow chart shall be consist of crushing, screening, single rotary kiln burning process, cooling process, screening and bag packing. The fuel could be coal, nature gas, biomass fuel and etc.

FEATURES

1. Energy-saving environment friendly

Advanced production process and large capacity for single production line with low heat loss. The advanced bag type dust collector, which is equipped in LECA equipment, keeps exhaust gas below 30mg/Nm3.

2. High degree of automation

Leca production line is fitted with temperature and pressure monitoring instrumentation, operating parameters of the computer display, and is capable of using advanced computer control to achieve automatic operation of the entire system.

3. Saving investment

Based on the features of Light Expanded Clay Aggregate (LECA), double-cylinder insert type rotary kiln controls the preheating and calcination process. The energy-saving vertical preheater is equipped in LECA production line with advanced process, and reasonable design and high level technology.



PAEAMETER


No

Indicator

Unit

Value

1

Capacity

m3/a

15,000

25,000

35,000

50,000

100,000

2

Product







LECA (Light Expanded Clay Aggregate)

m3/a

15,000

25,000

35,000

50,000

100,000

3

Main Fuel and raw material consumption







Clay

t/a

8,800

14,700

20,500

29,400

58,800

Shale

t/a

8,300

13,900

19,400

27,800

55,600

Coal

t/a

1,360

2,270

3,180

4,540

9,080

4

Power Consumption







Fresh Water

t/a

1,000

1,500

2,500

3,000

6,000

Power

kWh/a

187,500

312,500

875,000

1,250,000

2,500,000

5

Employee Qty Needed

a

25

25

23

23

22
