GGBS Production Line

【Capacity】:

10,000-300,000 t/a

【Main Materials】:

Slag,Cement

【Main Equipment】:

Vertical mill, ball mill process

Chat Online +8618937185591 Leave Message ec03@zkcorp.com

Introduction
Features
Parameter
Related Cases

INTRODUCTION

As a new admixture of high-performance concrete, slag powder has the advantages of improving concrete compression, tensile, shear, and bending properties. At present, replacing the amount of cement in concrete and cement products with the same amount of slag powder has become the mainstream trend in the building materials industry. At present, domestic large-scale vertical (ball) mill manufacturers do not produce small and medium-sized equipment, and small vertical (ball) mill manufacturing plants do not have the ability to design and manufacture the entire production line. In order to solve the difficulties of small and medium-sized investment owners in choosing suppliers, we designed and manufactured technical solutions and equipment for the entire mineral powder production line with an annual output of 100,000, 150,000, 200,000, and 300,000 tons.

FEATURES

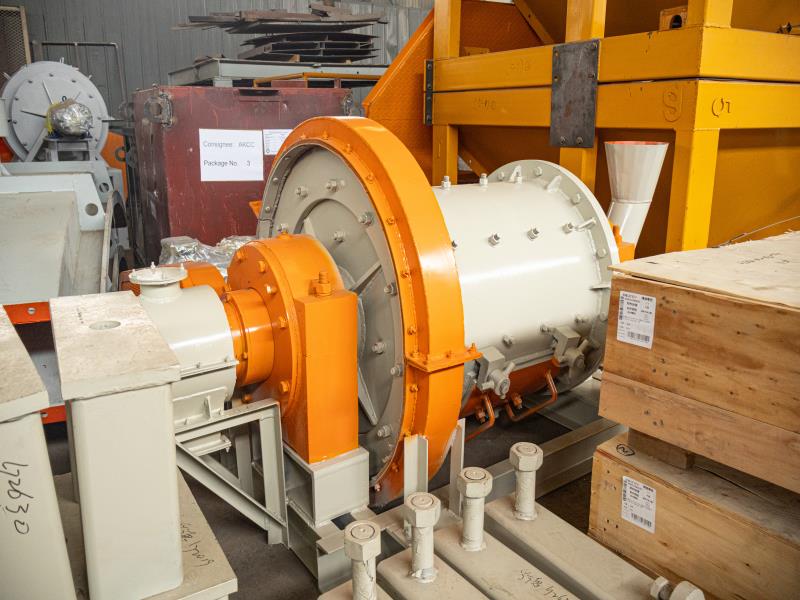

The production process of micro-slag powder has two production processes: ball milling and vertical milling, each with its advantages and disadvantages. The ball milling system is a traditional slag grinding process. It has strong adaptability to materials, large specific surface area, better particle shape than vertical mills, simple maintenance and cheap accessories. However, it occupies a large area, consumes a lot of power, and needs to dry the materials separately, and the process is complicated. Vertical mill slag grinding is a system that has developed rapidly in recent years. The process is simple. Drying, grinding, and powder selection are all completed in the mill. The investment is low, the unit power consumption is low, and the heat transfer is fast, but the maintenance is more difficult than ball milling. In recent years, the comprehensive benefits of vertical mills in the cement industry due to the advantages of energy saving and consumption reduction have become more and more obvious, and they have also been widely used and promoted in the electric power, metallurgy, chemical, and non-metal industries.

PAEAMETER

Hourly Capacity (t/h)			Annual Capacity (×10kt/a)			Vertical Mill Model	Disc Diameter (mm)		Vertical Mill Motor Power
Blast Furnace Slag	Cement	Raw Material	Blast Furnace Slag	Cement	Raw Material	Vertical Mill Model	Diameter	Roller Diameter	Vertical Mill Motor Power
1.5~2	3~4	6~8	1.5	3	5.5	ZKRM08.2	1200	800	55
3~4	5~6	10~12	3	4.5	9	ZKRM11.2	1500	1100	110
8~9	11~13	20~22	6	9.5	17	ZKRM13.2	1700	1300	185
9~10	14~16	26~34	8	12	24	ZKRM15.2	1900	1500	250
12~14	20~23	40~50	10	17	36	ZKRM17.2	2100	1700	355
15~17	24~26	50~60	13	20	43.5	ZKRM19.2	2300	1900	450
18~20	27~30	60~75	15	22.5	55	ZKRM20.2	2400	2000	560
23~25	40~50	85~110	20	35.5	77	ZKRM22.3	2600	2200	710
