1. Project Overview

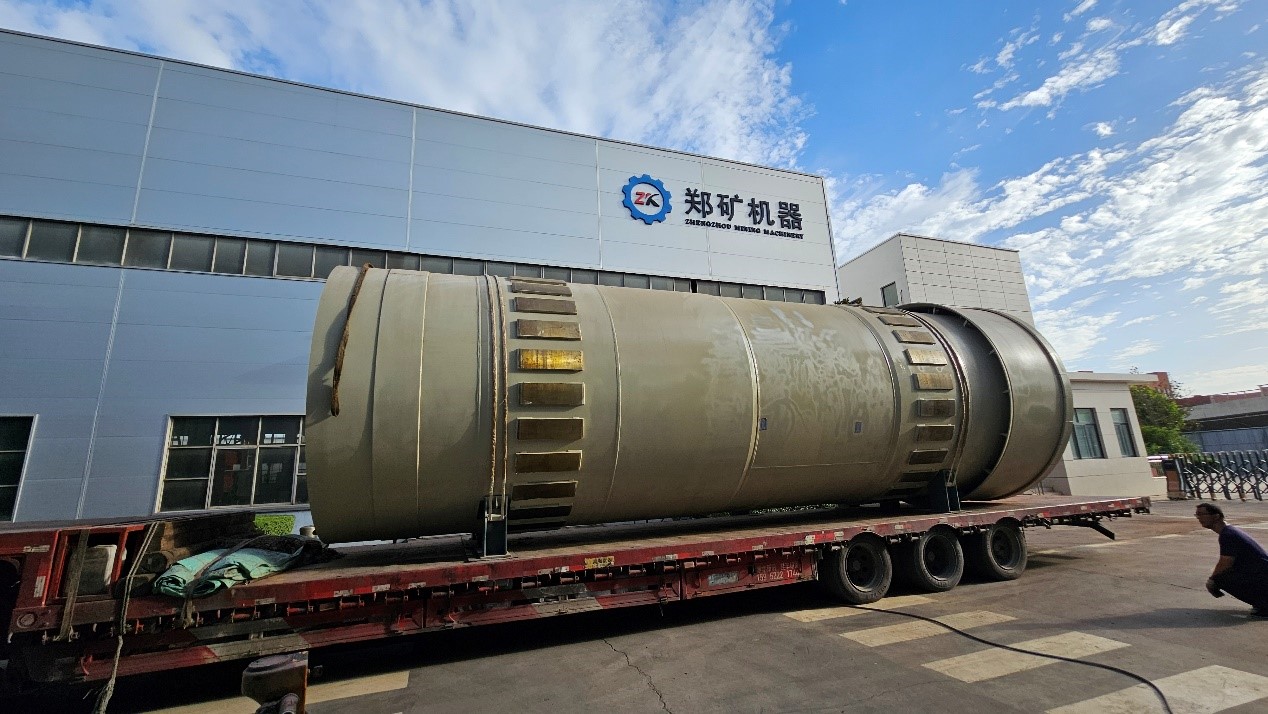

Item Name: Rotary Kiln
Model: φ3.2x10.5m
Quantity: 1 Set
Client: Singapore Company
Date: Feb, 2024
2.Project Introduction
In Early of 2023, a client from Singapore inquired a rotary kiln for chemical waste. Known he is for purpose to change old kiln onsite, our sales checked carefully with their onsite conditions like installation spaces & foundation, material natural, existing kiln parameter, etc, which can completely guarantee the onsite suitability. Through the deep communication with detailed parameter of rotary kiln, like size, material, refractory materials, 2-years spares, etc, the clients finally recognized our professional and manufacturing capacity, both parties have achieved the cooperation. The cargo has already shipped out by FR container in June.
3.Technical Parameter
S.N. | Item Name | Unit | Parameter | |
1 | SIZE | M | φ3.2 x 10.5m | |
2 | Slope | 2° | ||
3 | Quantity of Support | Nos | 2 | |
4 | RPM | r/min | 0.03-0.3 | |
5 | Motor | Model | YVF2-160L-6 | |
Power | kW | 11 | ||
RPM Range | r/min | 100~1000 | ||
Voltage | V | 415 | ||
Frequency | Hz | 50 | ||
6 | Reducer | Model | ZFY400-400 | |
Reduction Ratio | 400 | |||
7 | Transmission Gear Pair | Module | 26 | |
Girth Gear Teeth No. | 164 | |||
Pinion Teeth No. | 21 | |||
