Contractdate: January 21, 2017

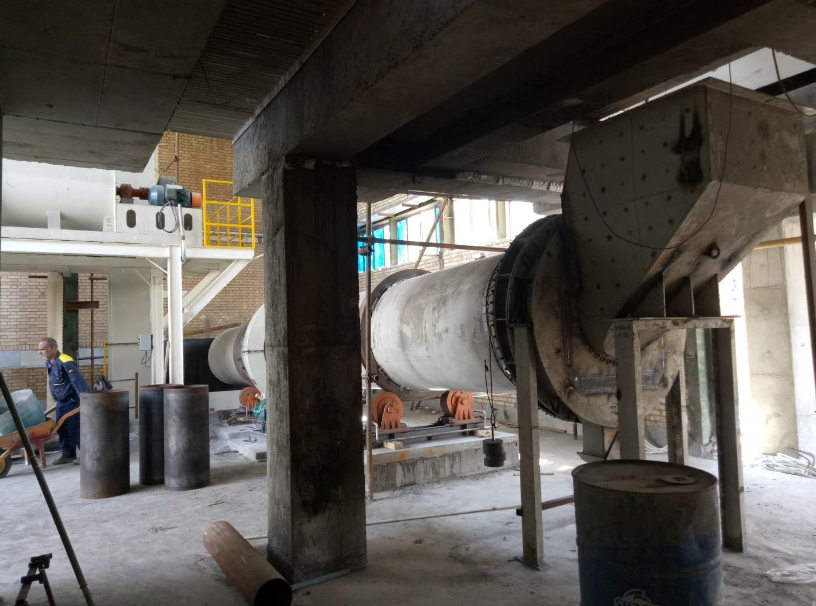

Equipment:1set of φ1.2*10m Rotary Dryer
Application:For calcined quick lime cooling purpose
Project information
The end user is a chemicalcompany in Iran. in need of calcined quick lime coolingpurpose.
Technical Solution
The process engineer suggestto φ1.2*10m Quick lime Rotary Dryer.
The two parties reached acontract in January 2017. The goods were successfully delivered in September2017.
EquipmentTechnical Specification
NO. | Name | Unit | Parameter | Remarks | |
1 | Type | m | φ1.2×10 | ||
2 | Output | t/d | 42-44 | ||
3 | Inclination | 5%(sine) | |||
4 | Support quantity | Pcs. | 2 | ||
5 | Revolving speed | r/min | 5.2 | ||
6 | Main motor | Model | Y132M-4 | ||
Power | kW | 7.5 | |||
Voltage | V | 380 | |||
Revolving speed | r/min | 150-1500 | |||
7 | Main reducer | Model | ZQ40-40.17-I | ||
Transmission ratio | i | 40.17 | |||
