Small crusher with a daily output of 50-100 tons

Several types of small-sized shredders with a daily output of 50-100 tons have been recommended for users, and several equipment prices are briefly introduced. (According to the daily standard operation for 10 hours, the production standard of 50-100 tons per day is 5-10 tons per hour)

Several types of small sized shredders with a daily output of 50to100 tons have been recommended for users, and several equipment prices are briefly introduced.  (According to the daily standard operation for 10 hours, the production standard of 50-100 tons per day is 5-10 tons per hour)

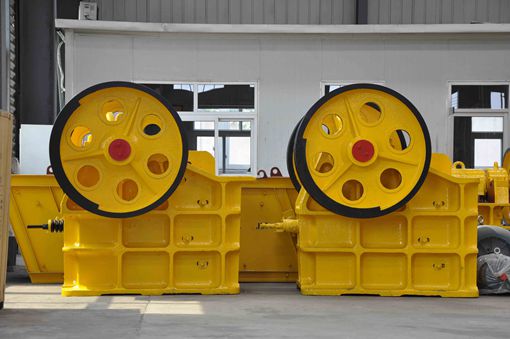

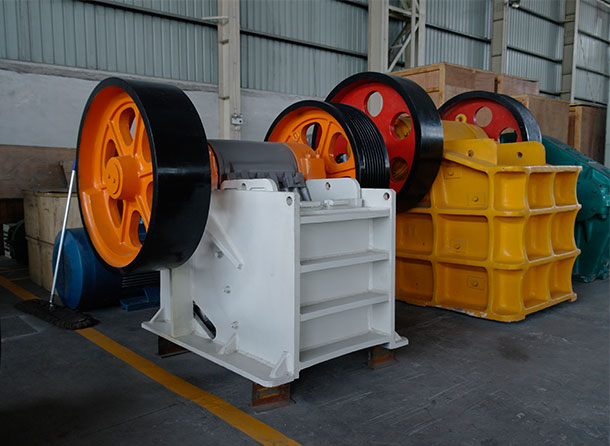

Jaw Crusher, recommended model: PE-200x350

Discharge opening width: 18-70mm

Feed particle size: ≤180mm

Eccentric shaft speed: 260r/min

Motor power: 4P 11Kw

Recommended reason

1. The user's gravel, stone material factory and other stone crushing processing, a variety of rock (limestone, bluestone, marble), pebbles and other pieces of broken handy.

2. The equipment has simple structure, small volume, small floor space and low energy consumption under limited production capacity.

3. Welding frame structure design, high-quality steel plate material, long equipment life, stable and reliable work.

4. The deep cavity is broken, not blocked, the crushing ratio is large, and the discharge opening is convenient to adjust.

5. Affordable, is a low consumption level of the crusher.

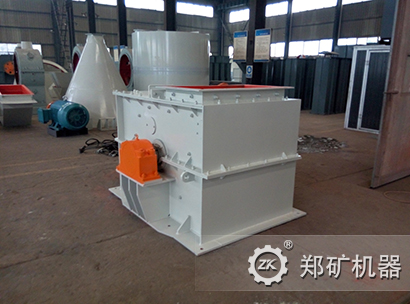

Hammer Crusher, recommended model: PC400x300

Recommended reason

1. Environmental protection: The structure design of the machine body is sealed to reduce the dust flying in the crushing workshop and the leakage of the body.

2. Durable: the hammer head material is excellent, the use period is long, and the other vulnerable parts in the machine body are less, the maintenance is convenient, and the durability is more durable.

3. The price is low: the hammer break machine is affordable, one machine can be used for two devices, and the user purchase is more cost-effective.

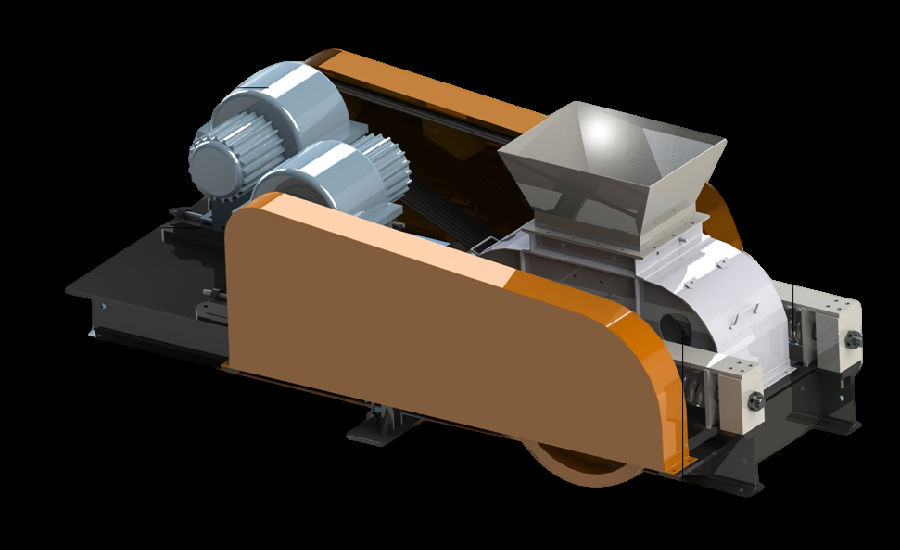

For double roller crusher, the recommended model: 2PG0425

Roll diameter: φ400mm

Roll width: 250mm

Feeding particle size: ≤25mm

Discharge port: 2-8mm

Motor power: 5.5x2Kw

Recommended reason

1. Simple structure and convenient operation, and who has dustproof board inside to avoid fine powder splashing and reduce dust, noise and other pollution.

2. The crushing rate is low, and the finished stone has good grain shape and excellent quality after crushing.

3. Standardized structural design, equipment versatility, interchangeability, and more convenient use.
