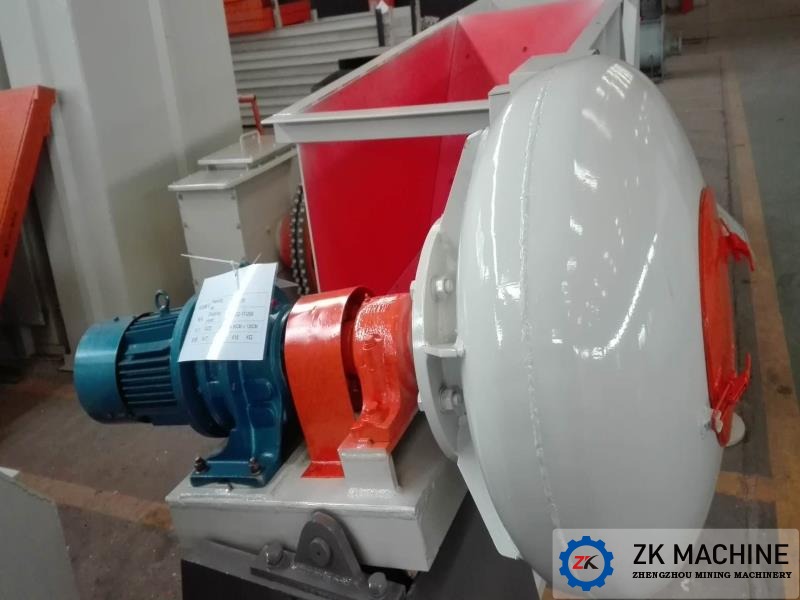

ZKL24 Granulator Project in Dandong

1. Project Introduction

(1) Project Location: Dandong, Liaoning, Province

(2) Purchaser: Dandong Jinliao Chemical Co., Ltd.

(3) Product Name: Pan Granulator

(4) Product Model: ZKL24

(5) Supply Scope: Complete Set of Equipment

2. Project Description

(1) Material: Boromagnesite Powder, Dolomite Powder and etc., approx.. 100-120 mesh, bulk density approx. 1.9.

(2) Process: The Purchaser's factory has a disc granulator production line. After learning that the particles produced by the pan-type granulator have better roundness and strength, they decided to select the equipment themselves and plan to build a pilot production line first.

3. Main Advantages

(1)High pelletization rate, and the finished pellets have uniform particle size and high strength.

(2)The use of variable-frequency speed-regulating motors makes it convenient to adjust the rotational speed according to the process requiremefnts.

(3)The entire machine has a compact structure, occupies a small space, has smooth transmission, high reliability and low noise.

(4)Low failure rate, high production efficiency, reasonable equipment design and structure, long service life .

4. Attention

(1) Pre-operation inspection: Ensure all components are in good condition and well lubricated.

(2) Material control: Avoid excessive or insufficient amounts to prevent adverse effects on the ball-making process.

(3) Maintenance and servicing: Regularly clean and lubricate, and inspect vulnerable parts.

(4) Safe operation: Follow the operating procedures and avoid overloading the equipment.

5. Main Technical Parameters for ZKL24 Pan Granulator

(1) Size: φ2400（designated type）

(2) Rev. Speed: 2-20r/min

(3) Total Volume: 3.55m³

(4) Model of Motor: YVF-200L-4

(5) Motor Power: 30kW

(6) Rev. Speed: 150-1500r/min

(7) Model of Reducer: ZSY315-71

(8) Ratio of Reducer: i=71 (With a mandatory lubrication device)

6. Summary

In addition to the above features, the pot-type granulator also has the advantages of convenient maintenance operation, reduced maintenance workload, long equipment service life, and improved product quality. It not only reduces equipment investment but also helps improve the quality of the finished products. Henan Zhengmin Machinery Co., Ltd., as a well-known high-tech enterprise in China, not only has strong R&D and production capabilities in the fields of environmental protection, building materials, mining and metallurgical chemical industry, but also is committed to providing customers with comprehensive and customized services from design, manufacturing, installation to commissioning and operation guarantee. The double-axis disintegrator produced by our company has a simple working principle and convenient maintenance, making it an ideal choice for modern production processes. When selecting and using it, it is necessary to make reasonable configurations according to specific needs and environmental conditions to ensure the efficient operation and long-term use of the equipment. The company's years of in-depth efforts have enabled it to gain high recognition both within and outside the industry, becoming an important force in promoting industrial upgrading and promoting technological progress.
