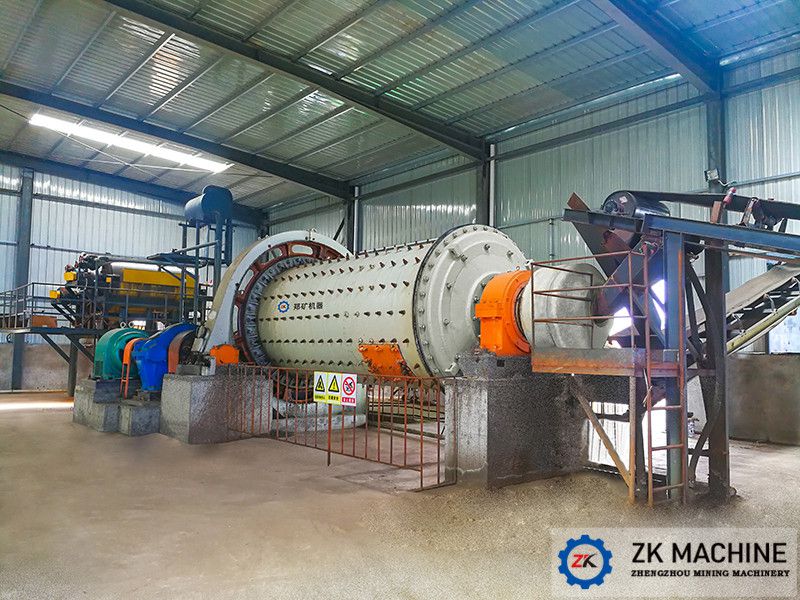

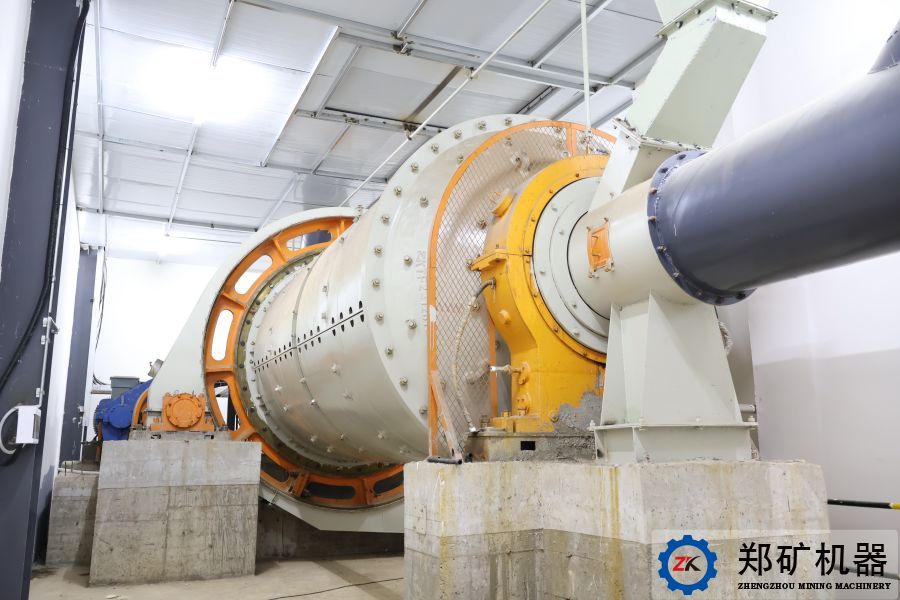

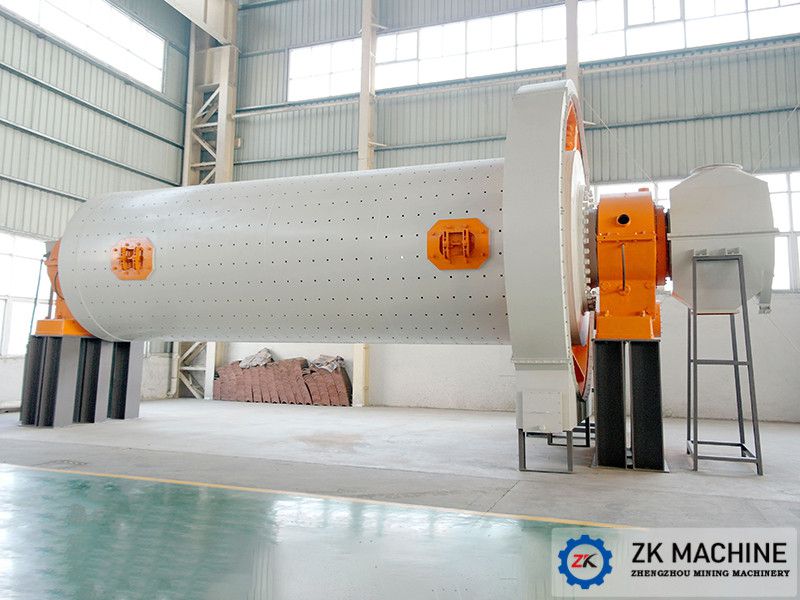

Cone Ball Mill

  • Model:GZM1541,GZM2742
  • Capacity:4.1-117(t/h)
ConeBall mill is the key equipment for grinding after the crushing process, whichis widely used in the manufacture industries, such as cement, silicate, newbuilding material, refractory material,...

Raw Materials:

Cement, silicate, newbuilding material, refractory material, fertilizer, ferrous metal, nonferrousmetal and glass ceramics.

Application:

Mining industry, chemical engineering, construction material and metallurgy industry

Introduction

Cone Ball mill is the key equipment for grinding after the crushing process, whichis widely used in the manufacture industries, such as cement, silicate, newbuilding material, refractory material, fertilizer, ferrous metal, nonferrousmetal and glass ceramics and can be used for the dry and wet grinding for allkinds of ores and other grind-able materials.



Cone Ball Mill

Product Advantages

  • 01

    Its weight is reduced by 30—60% than the common rolling bearing ball mill.

  • 02

    The granularity of the discharging materials can reach 0.074mm.

  • 03

    The Noise can be reduce by 5-10 decibel.

  • 04

    Can be used for the dry and wet grinding.

Parameter


Model

Standards of  Cylinder

(Diameter x  Length )

(mm)

Rotating  Speed  of  the  Cylinder

(r/min)

Weight  of  loading-balls

(t)

Granularity  of  feeding  materials

(mm)

Granularity  of discharging  -materials

(mm)

Output

(t/h)

Motor

External  Dimension

(LxWxH)

(mm)

Weight

(kgs)

Model

Power

(kW)

GZM1541

Φ1500x4100

31

12

≤30

0.074-0.3

4.1-11

JR125-8

95

7970x2938x2490

19320

GZM1544

Φ1500x4400

31

14

≤30

0.074-0.3

4.7-12.5

JR126-8

110

8270x2938x2490

20702

GZM1556

Φ1500x5600

27.6

16

≤30

0.074-0.6

3.6-25

JR126-8

110

9470x2938x2490

22676

GZM1836

Φ1830x3600

25.2

13.7

≤25

0.074-0.6

2.8-21

JR127-8

130

8560x3812x3134

36254

GZM1842

Φ1830x4200

25.2

16

≤25

0.074-0.6

3.5-25

JR128-8

155

9160x3812x3134

37106

GZM1846

Φ1830x4600

25.2

17.5

≤25

0.074-0.6

3.5-26

JR128-8

155

9560x3812x3134

37483

GZM1856

Φ1830x5600

25.2

20

≤25

0.074-0.6

4-30

JR136-8

180

10385x3910x3334

40785

GZM2145

Φ2100x4500

23.8

22

≤25

0.074-0.5

5-35

JR138-8

245

9400x3920x3394

46009

GZM2158

Φ2100x5800

23.8

25

≤25

0.074-0.5

7-43

JR1410-8

280

10700x3920x3394

55930

GZM2727

Φ2700x2700

21.7

25

≤20

0.074-0.5

9-74

JR138-8

245

7093x4897x4385

56757

GZM2733

Φ2700 x 3300

21.7

32

≤25

0.074-0.5

11.8-92.7

JR157-8

320

9290x5610x4510

71482

GZM2736

Φ2700x3600

21.7

34

≤25

0.074-0.5

12.5-80

JR158-8

380

9590x5610x4510

74209

GZM2742

Φ2700x4200

21.7

36

≤25

0.074-0.5

15-117

JRQ158-8

380

10190x5610x4510

82777
