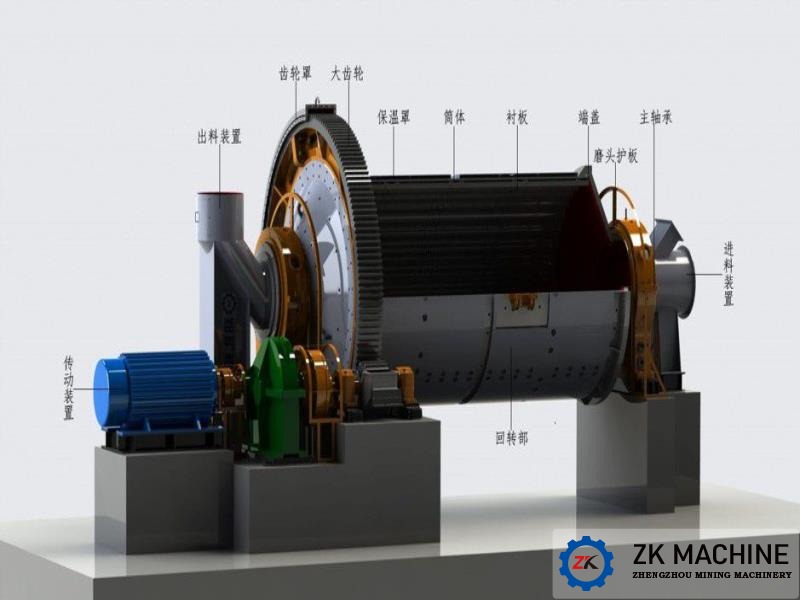

MQZ Energy Saving Bearing Type Edge Drive Ball Mill, is widely used in ore dressing, chemical, coal, cement, refractory industries.
The bearing type edge drive ball mill has been technology upgraded. Compared with traditional type, it reduces working electric current 15%, and reduces starting electric current 50%. It has greatly improved the faults of concentricity, running unstable, current fluctuated etc. After using roller bearing, the hollow shaft can also work and save lubricant 90%, increase ball loading 20%, increase capacity 15%, speed up 10% and save electricity 20-30%.
The motor power matched the overflow ball mill can be reduces by 18%-25%, energy saving should be more than 20%.
The customers don’t need change the main bearing frequently so that can save a lot of maintenance costs and work time.
The main bearing adopts grease lubrication, which can be protected from heavy metal pollution.
The whole processing is smooth and reliable.
| Model | Cylinder Size (m) | Rotating Speed (r/min) | Weight of balls (t) | Feed Size (mm) | Outlet Size (mm) | Capacity (t/h) | Power (kW) | Weight (t) |
|---|---|---|---|---|---|---|---|---|
| MQZ1224 | 1.2x2.4 | 31 | 4.8 | 0-20 | 0.074-0.6 | 0.4-6.8 | 37 | 13.43 |
| MQZ1245 | 1.2x4.5 | 31 | 5.2 | 0-20 | 0.074-0.6 | 1.6-12 | 45 | 17.4 |
| MQZ1530 | 1.5x3.0 | 27.5 | 8.1 | 0-25 | 0.074-0.4 | 2.9-16.5 | 65 | 18.6 |
| MQZ1557 | 1.5x5.7 | 29.2 | 15 | 0-25 | 0.074-0.4 | 4-25 | 95 | 24.54 |
| MQZ1645 | 1.6x4.5 | 27.5 | 14 | 0-25 | 0.074-0.4 | 4-24 | 95 | 26 |
| MQZ1836 | 1.8x3.6 | 23.9 | 11 | 0-25 | 0.074-0.4 | 8-40 | 132 | 33 |
| MQZ1864 | 1.8x6.4 | 23.9 | 18.5 | 0-25 | 0.074-0.4 | 8-60 | 155 | 35.6 |
| MQZ2130 | 2.1x3.0 | 23.8 | 19.8 | 0-25 | 0.074-0.4 | 6.5-36 | 155 | 45 |
| MQZ2136 | 2.1x3.6 | 23.8 | 27 | 0-25 | 0.074-0.4 | 8-61 | 155 | 46.8 |
| MQZ2265 | 2.2x6.5 | 21.6 | 28 | 0-25 | 0.074-0.4 | 8-35 | 210 | 62 |
| MQZ2430 | 2.4x3.0 | 22 | 22.5 | 0-25 | 0.074-0.4 | 7-92 | 210 | 67 |
| MQZ2436 | 2.4x3.6 | 22 | 28 | 0-25 | 0.074-0.4 | 7-95 | 210 | 73 |
| MQZ2465 | 2.4x6.5 | 22 | 36 | 0-25 | 0.074-0.4 | 7-110 | 260 | 76 |
| MQZ2736 | 2.7x3.6 | 21.9 | 39 | 0-25 | 0.074-0.4 | 13-140 | 310 | 77 |
| MQZ2745 | 2.7x4.5 | 21.9 | 43 | 0-25 | 0.074-0.4 | 13-150 | 320 | 91 |
| MQZ2836 | 2.8x3.6 | 20 | 42 | 0-25 | 0.074-0.4 | 15-140 | 310 | 94.2 |
| MQZ3060 | 3.0x6.0 | 19 | 70 | 0-25 | 0.074-0.4 | 100-145 | 630 | 155 |
| MQZ3245 | 3.2x4.5 | 18.6 | 65 | 0-25 | 0.074-0.4 | 100-145 | 630 | 126 |
| MQZ3260 | 3.2x6.0 | 18.6 | 86 | 0-25 | 0.074-0.4 | 120-150 | 800 | 176 |
| MQZ3645 | 3.6x4.5 | 17.8 | 90 | 0-25 | 0.074-0.4 | 120-220 | 1000 | 159.7 |
| MQZ3660 | 3.6x6.0 | 17.8 | 120 | 0-25 | 0.074-0.4 | 50-230 | 1250 | 189 |
