The mixer, also known as blender, is a necessary device for the uniform mixtund blend of various materials. The mixing drum is used to completely mix medicre aine thus increasing its effect time and making it more effective in a short time. The agitating machine is widely used for concentrating purposes in every chemical industry that involves mixing. The V-belt facilitates the rotation mechanism of the machine.

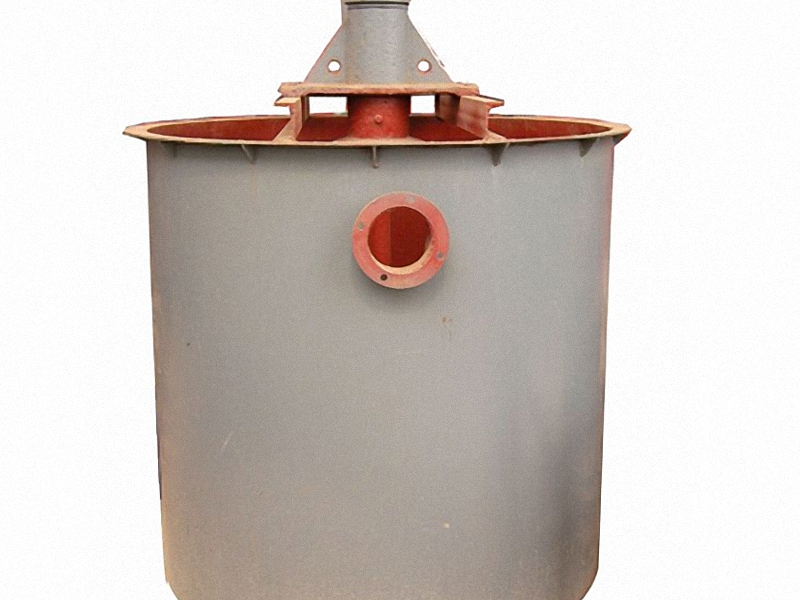

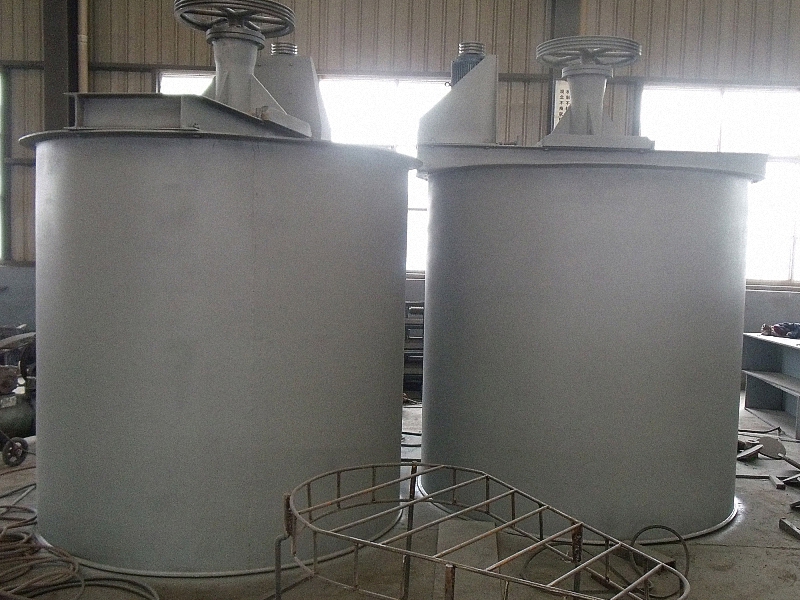

This product is the most commonly used ordinary agitating tank at present. Located at the bottom opening of the cycling cylinder, its impeller feeds ore pulp and chemical reagent into the cycling cylinder with a suction orifice for agitating. The new impeller designed by through experiments is different from the original agitating tank with high agitating efficiency.
Inner size | valid volume | mixing | motor | measurement | weight | ||||
diameter | height | impeller diamter | impeller rev | model | power | height | lenght | ||
mm | mm | m2 | mm | r/m | kw | mm | mm | kg | |
750 | 750 | 0.26 | 240 | 530 | Y90L-4 | 1.5 | 1241 | 939 | 228 |
1000 | 1000 | 0.58 | 240 | 530 | Y100L-6 | 2.2 | 1665 | 1300 | 658 |
1200 | 1200 | 3.6 | 300 | 480 | Y100L-6 | 3 | 1800 | 1420 | 760 |
1500 | 2.2 | 400 | 320 | Y132S-6 | 3 | 2386 | 1690 | 861 | |
2000 | 2000 | 5.46 | 550 | 230 | Y132M2-6 | 4 | 3046 | 2381 | 1240 |
2500 | 2500 | 11.2 | 625 | 230 | Y160M-6 | 7.5 | 3546 | 2881 | 3462 |
3000 | 3000 | 19.1 | 700 | 210 | Y200L-6 | 22 | 4325 | 3266 | 4296 |
